Quick Details

  • Type: LED Modules
  • Model Number: YLJ-LS1/1W-6-Z
  • Chip Material: PVC
  • Emitting Color: Cool White
  • Luminous Flux(lm): 60-70
  • Optical Attenuation(%): 2
  • Power: 1W
  • Power Dissipation: 2%
  • Viewing Angle(°): 10*60
  • Color Rendering Index(Ra): 85
  • Color Temperature: 15000-20000K, 6500-7000k
  • Operating Temperature(℃): -20 - 50
  • Storage Temperature(℃): -20 - 60
  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: YIGAO
  • Certification: CE, RoHS
  • Led type: 2835
  • working time: 5000h
  • voltage: 12V
  • current: 160mA
  • IP: 65
  • Warranty: 2 years
  • Certificate: CE and RoHS
  • Lamp Body Material: PVC
  • Application: Signage

Packaging & Delivery

Packaging Details 20pieces in a row.100 in a bag.2000 in a carton

Good price and high power l led light for signage

Packaging & Delivery

Packaging Detail:20pieces in a row.100 in a bag.2000 in a carton.
Delivery Detail: within 5-10 days after conforming the order

Specifications

Good price and high power led module

modle

LED

type

Light color

Color temperature(nm)

angle

Liminous flux lm/pcs

Color renderingRa

Luminous efficiencylm/W

voltage(V DC)

current(mA/pcs)

powerW/pcs

YLJ-LS1/1W-6-Z

2835

Cool white

15000-20000K

10*60

60-70

≥75

100

12V

160

1

1.Good quality chips.

2.High brightness.high lm

3.Long life hours:50000h

4.CE&RoHS

The feature of  Good price and high power led module

1.The beautiful appearance, the high-class, generous, elegant

2.Independent research of our company and development of high quality LED side light source products,and high brightness

3.The high light efficiency can be able to achieve zero attenuation, life can be up to 50000H
4.This product is the latest development of
Yigao module in 2015

5.The maintenance, high efficiency, low cost

6.The DC12V input, the use of safety

Why led module for signs boards?


1.Low Energy Consumption Up to 80% less energy consumption than most conventional lighting products.

2.Low Heat Signature Operates at 2 degrees above room temperature on average, reducing the risk of burning or starting fires.

3.Easy Installation Can be mounted into most sign cans providing a quick and easy plug and go system.

4.Economic Being very energy efficient with no wasted light or heat, Metroplus Advertising LED Supply lighting products are one of the most economical signage solutions available today.

5.Durable LED lights have a very low maintenance record are hard to break or smash, damages and shipping costs are greatly decreased.Long life Up to 50,000 hrs life, which is approx 5 years

6.Distinctive Get a competitive edge with greater curb appeal.

7.Attractive Display multiple eye catching advertisements, day or night.

8.Increased Revenue Will increase your business revenue from 15%-150% within your first year.
Application of   Good price and high power led module

  Applications: the advertisement picture, double-sided lighting lighting, airport, subway, banks, shopping malls and other small building, Rab Lightbox backlight illumination;

Scope of application: light box built-in light source of 8~18cm thickness

 What is advantange of  Good price and high power led module



 LED light source                    5W hours                              safety voltage                     easyinstallation
Structure of Products
   Green                  Recyclable             saving                rich co

single

a series of product

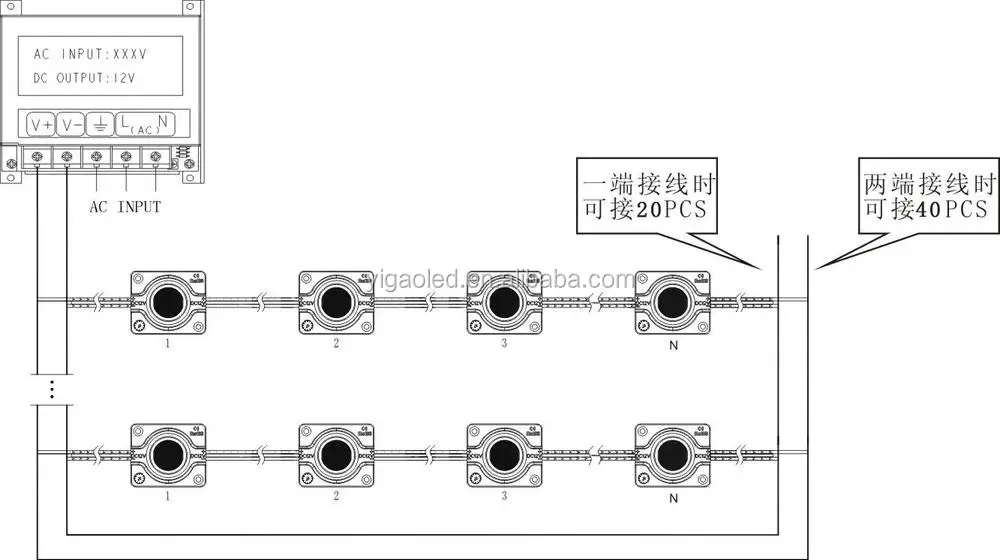

Electrical connection

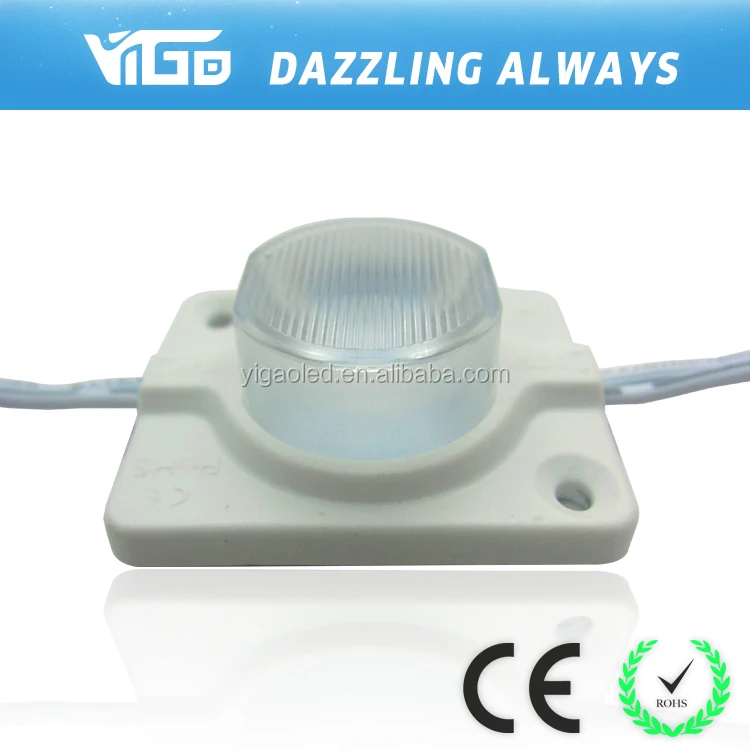

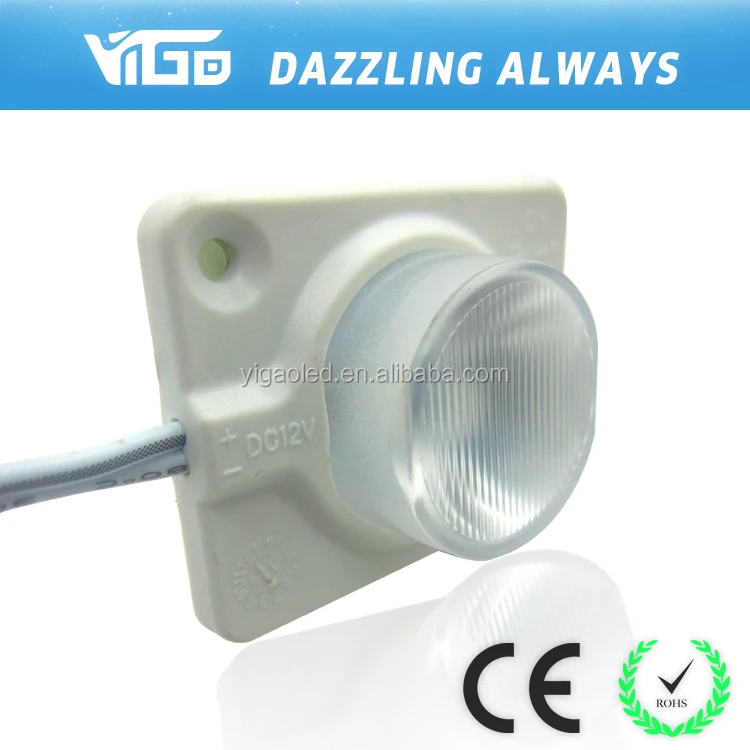

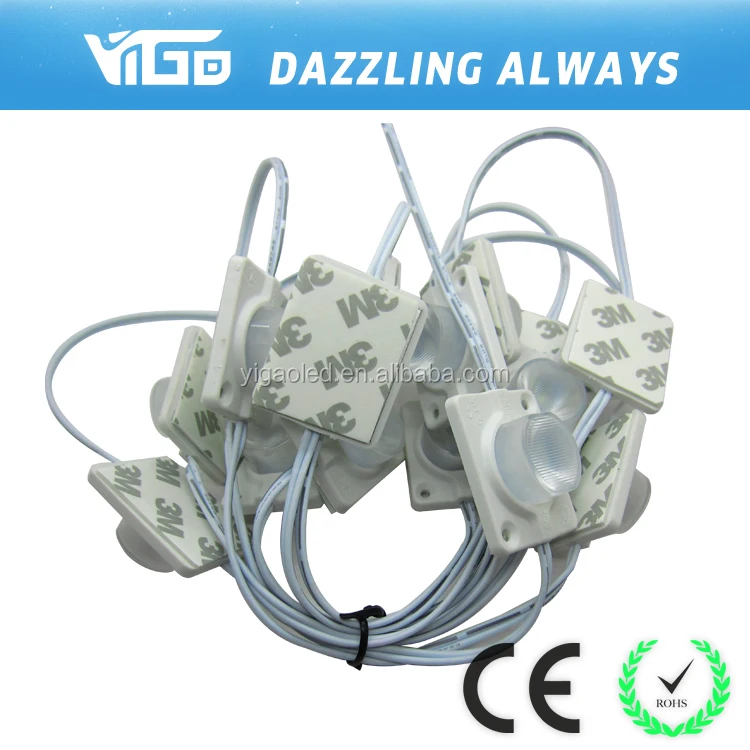

Details

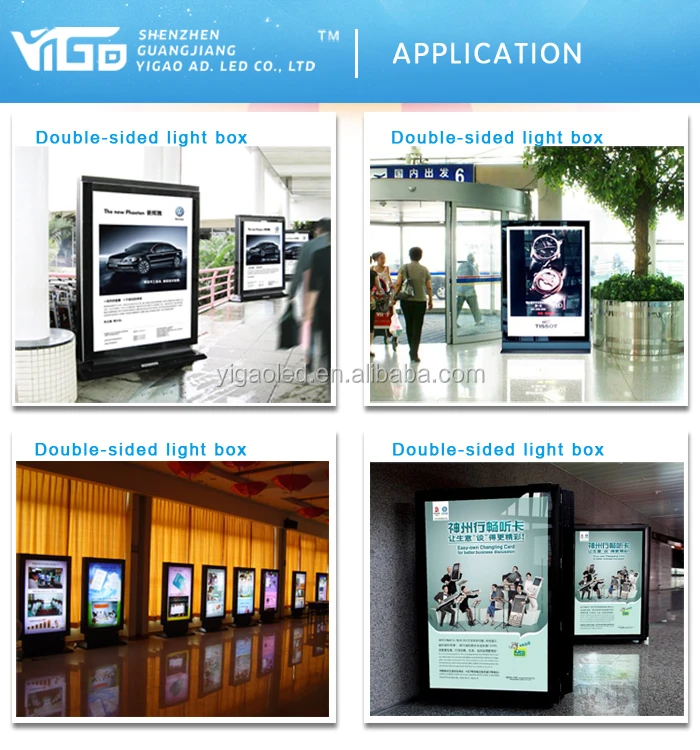

Application
Package

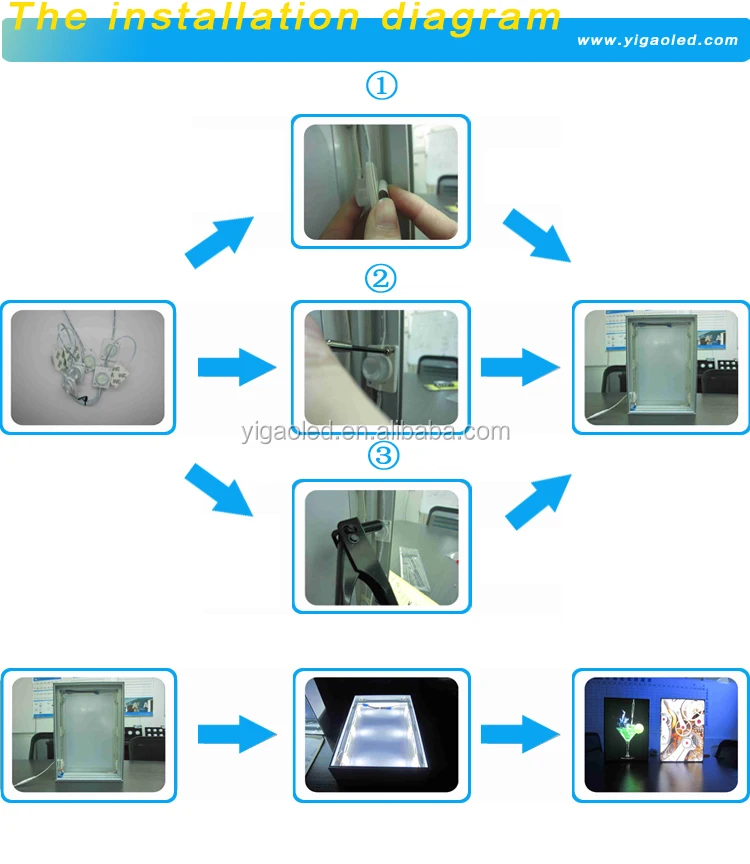

Installation

Why choose Yigao as consist supplier?





 YIGAO advertising LED, Dazzling Always



  Shenzhen YIGAO Optoelectronics CO., LTD. is a high-tech company engaged in researching, manufacturing, marketing and selling LED light source. It is located in Shiyan - Shenzhen, the hometown of LED lighting industry.








   With a strong experience in Producing R&D LED light source and providing a wide range of services to the customers, the company keeps the development philosophy "Integration of optoelectronic technology, focusing on the advertising industry, and expanding marketing channels. Promoting YIGAO brand”, we have won widely recognized by the customers of Advertising Logo, Light-box, Exhibition Display and so on since the foundation in 1995.







1, founded in May 20, 1995, nearly 20 years, has been committed to the advertising of photovoltaic field, to win customers at home and abroad "steady, stick, good reputation of trustworthy".



2, Since the beginning of 1999, and is currently the largest advertising equipment Chinese chain supermarkets, 15 years of close cooperation has been maintained until now
